Hardox Moldboard Replacement, Shank Renewal, and Structural Wear Protection
Dragline buckets operate in some of the harshest material-handling environments in mining and aggregate operations. Constant abrasion, impact loading, and cyclic stress eventually wear critical components beyond acceptable limits, compromising digging efficiency, increasing downtime risk, and accelerating failure of surrounding structures.
This project involved a full structural repair and wear rebuild of an ESCO dragline bucket, with a focus on restoring the cutting edge, reinforcing high-wear zones, and extending the service life of the bucket without unnecessary replacement of sound base material. Xtreme Services was contracted to perform this work in-house, supplying all labor, equipment, and materials required to return the bucket to reliable operating condition.
The scope centered on cutting out damaged components, installing a 2-inch thick Hardox beveled lip, fitting ESCO U45 teeth, blending new material into the existing shell with AR plate, and reinforcing critical knuckle and wear areas to withstand future duty cycles.
Project Scope Overview
The following work was included in this repair:
- Removal of the existing worn moldboard and damaged shank assemblies
- Installation of a 2″ thick beveled Hardox cutting edge
- Fit-up and installation of ESCO U45 tooth system
- Blending the new lip into the bucket structure using abrasion-resistant (AR) plate
- Addition of AR plate to high-wear areas throughout the bucket
- Inspection of bucket knuckles
- Installation of additional wear plates to protect knuckles
- Supply and installation of new knuckle connection pins
This scope intentionally excluded new chain, cable, or shipping, allowing the repair to focus exclusively on structural and wear-component restoration.
Initial Inspection and Assessment
Before any cutting or welding began, the bucket was thoroughly inspected to determine the full extent of wear and damage. Particular attention was paid to:
- Moldboard thickness and wear profile
- Shank integrity and tooth seating surfaces
- Knuckle condition, pin bores, and surrounding steel
- Existing weld quality and heat-affected zones
- Wear patterns indicating material flow and impact points
This inspection confirmed that while the cutting edge and shanks were beyond serviceable limits, the bucket shell itself remained structurally sound and suitable for rebuild. That assessment allowed the repair to focus on targeted replacement and reinforcement rather than full bucket replacement—saving significant cost while restoring performance.
Removal of Worn Moldboard and Shanks
The first major phase involved cutting out the existing moldboard and shank assemblies. Years of abrasion had thinned the cutting edge and compromised the geometry required for efficient digging and material penetration.
Using controlled cutting methods, the worn components were removed cleanly to avoid unnecessary heat input into the surrounding structure. This step is critical: excessive heat or poor cut control can introduce stress risers or distortion that shorten the life of the repair.
Once removed, the exposed base material was cleaned, ground, and prepared for fit-up of the new lip assembly.
Installation of 2″ Hardox Beveled Cutting Edge
A 2-inch thick beveled Hardox lip was selected for this application due to its exceptional abrasion resistance and toughness under impact loading. Hardox is specifically designed for severe wear environments, making it well-suited for dragline operations where both cutting and impact forces are present.
The new lip was precision-fit to the bucket geometry, ensuring:
- Proper alignment across the full cutting edge
- Correct bevel orientation for optimal penetration
- Consistent contact with the existing shell structure
Fit-up accuracy at this stage directly affects tooth performance, wear distribution, and long-term reliability.
ESCO U45 Tooth System Installation

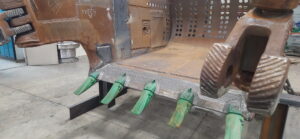

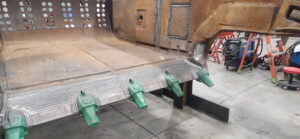

With the new cutting edge in place, ESCO U45 tooth adapters and teeth were installed. The U45 system is widely used in high-production environments due to its robust locking mechanism and resistance to tooth loss under heavy loads.

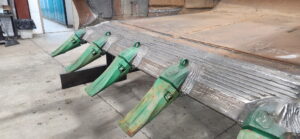

Each adapter was positioned and welded according to ESCO specifications, maintaining proper spacing and alignment to ensure even load distribution across the cutting edge. Improper tooth alignment can cause localized wear, adapter failure, or cracking in the lip—issues this repair was designed to prevent.
Blending and Structural Integration Using AR Plate
After installation of the new lip and tooth system, the transition between new and existing material was blended using abrasion-resistant plate. This blending process serves two critical purposes:
- Structural continuity – eliminating abrupt thickness changes that can concentrate stress
- Wear management – ensuring material flow does not prematurely attack weld toes or thinner base metal
AR plate was carefully contoured and welded to match the bucket’s geometry, allowing the repaired area to function as a single, integrated structure rather than a patched assembly.
Reinforcement of High-Wear Areas
Beyond the cutting edge, additional AR plate was installed in areas showing advanced wear from material flow and impact. These locations were identified during inspection and confirmed during teardown.
Strategic reinforcement in these zones extends service life by:
- Protecting base material from accelerated thinning
- Reducing maintenance intervals
- Preserving structural integrity over repeated duty cycles
Rather than blanket plating, reinforcement was targeted only where needed—balancing durability with weight control.
Knuckle Inspection and Wear Plate Installation
The bucket knuckles are critical load-bearing components that experience constant articulation and high stress. These areas were closely inspected for wear, deformation, and pin bore condition.
Where appropriate, additional wear plates were installed to protect the knuckles from further erosion. This preventative reinforcement helps avoid more costly repairs in the future, particularly in areas that are difficult to access once the bucket is back in service.
New Knuckle Connection Pins
As part of the rebuild, new knuckle connection pins were supplied and installed. Worn or damaged pins can accelerate wear in surrounding components and compromise load transfer.
Replacing these pins during the rebuild ensures:
- Proper fit and articulation
- Reduced play and impact loading
- Improved overall reliability of the bucket assembly
This step completes the mechanical side of the repair, ensuring the bucket is ready for reintegration into the dragline system.
Welding Standards and Quality Control

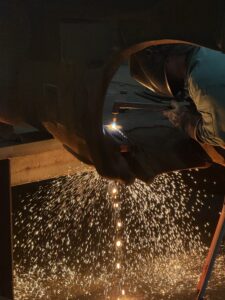

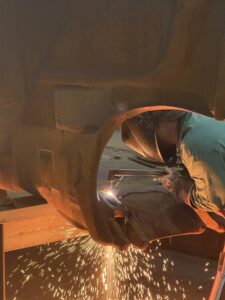

All welding on this project was performed by experienced craftsmen familiar with heavy mining components and abrasion-resistant materials. Proper procedures were followed to manage heat input, preheat requirements, and interpass temperatures—especially critical when working with Hardox and AR plate.
Welds were visually inspected throughout the process, with particular attention paid to:
- Fusion at transitions between materials
- Consistent bead profile and penetration
- Absence of undercut or excessive reinforcement
The goal was not just to restore function, but to ensure the repair would withstand long-term service without premature cracking or failure.
Extending Service Life Through Targeted Repair
This ESCO dragline bucket rebuild demonstrates how strategic repair and reinforcement can dramatically extend the life of heavy equipment components. By replacing only what was necessary, reinforcing high-wear zones, and integrating new material correctly, the bucket was returned to service-ready condition without the cost or lead time of a full replacement.
Projects like this require a deep understanding of wear patterns, material behavior, and real-world operating conditions—knowledge gained through hands-on experience in heavy industrial environments.
